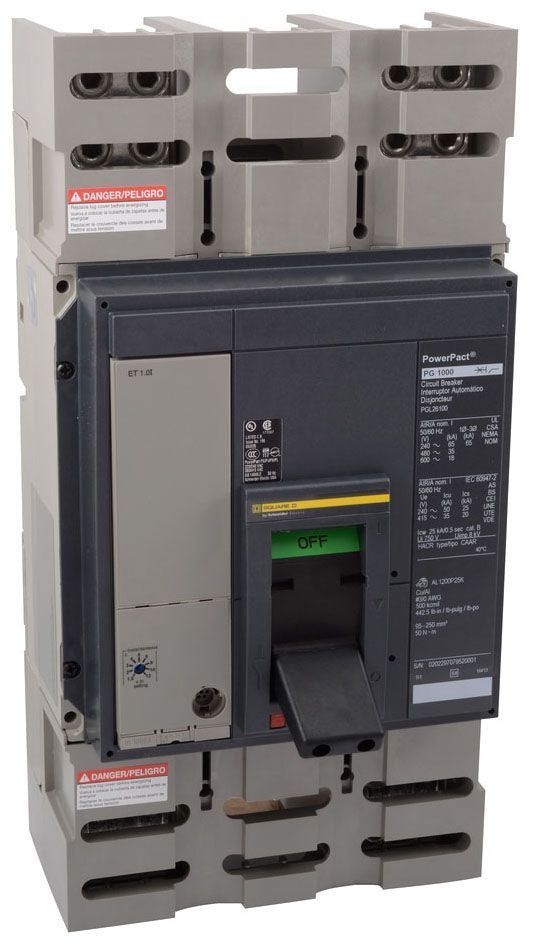

Square D Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 65kA, lugs, Micrologic 6.0A, 100% PKL36120CU44A

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has lugs on both the line and load sides. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

MainRangePowerPactproduct namePowerPact PProduct or Component TypeCircuit breakerDevice ApplicationDistribution

Line Rated Current1200 ANumber of Poles3PControl TypeToggleBreaking capacity codeKBreaking capacityAIR 65 kA 240 V AC 50/60 Hz UL 489
AIR 50 kA 480 V AC 50/60 Hz UL 489
AIR 50 kA 600 V AC 50/60 Hz UL 489
Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2
Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2[Ue] rated operational voltage600 V AC 50/60 Hz UL 489Network Frequency50/60 Hz[Ics] rated service breaking capacity25 kA 240 V AC 50/60 Hz IEC 60947-2
25 kA 380/415 V AC 50/60 Hz IEC 60947-2[Uimp] rated impulse withstand voltage8 kV IEC 60947-2Trip unit technologyElectronic, ammeter, MicroLogic 6.0 A, LSIGContinuous current rating100 %[Ui] rated insulation voltage750 V IEC 60947-2Trip unit nameMicroLogic 6.0 ASuitability for isolationYes IEC 60947-2Utilisation categoryCategory AAWG gauge4 x AWG 3/0...500 kcmil aluminium/copperLocal signallingOverload 1 trip indicator green)
1 trip indicator green)
Trip causes 1 trip indicator green)Mounting modeUnit mount lug)Mounting SupportLugElectrical connectionLugs, line
Lugs, loadTerminal identifierAL1200P25KLong time pick-up adjustment range0.4...1 x IrTightening torque442.5 lbf.in (50 N.m) 0.1…0.4 in² (95…240 mm²) (4 x AWG 3/0...500 kcmil)
8.9…11.5 lbf.in (1.0…1.3 N.m)Number of slots2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 overcurrent trip switch SDE plug-in)
1 voltage release MN or MX plug-in)Power wire stripping length1.2 in (30 mm)Height16.16 in (410.46 mm)Width8.27 in (210.06 mm)Depth8.05 in (204.47 mm)Product Weight32 lb(US) (14.5 kg)Quantity per Set1Circuit breaker applicationHACR rated
