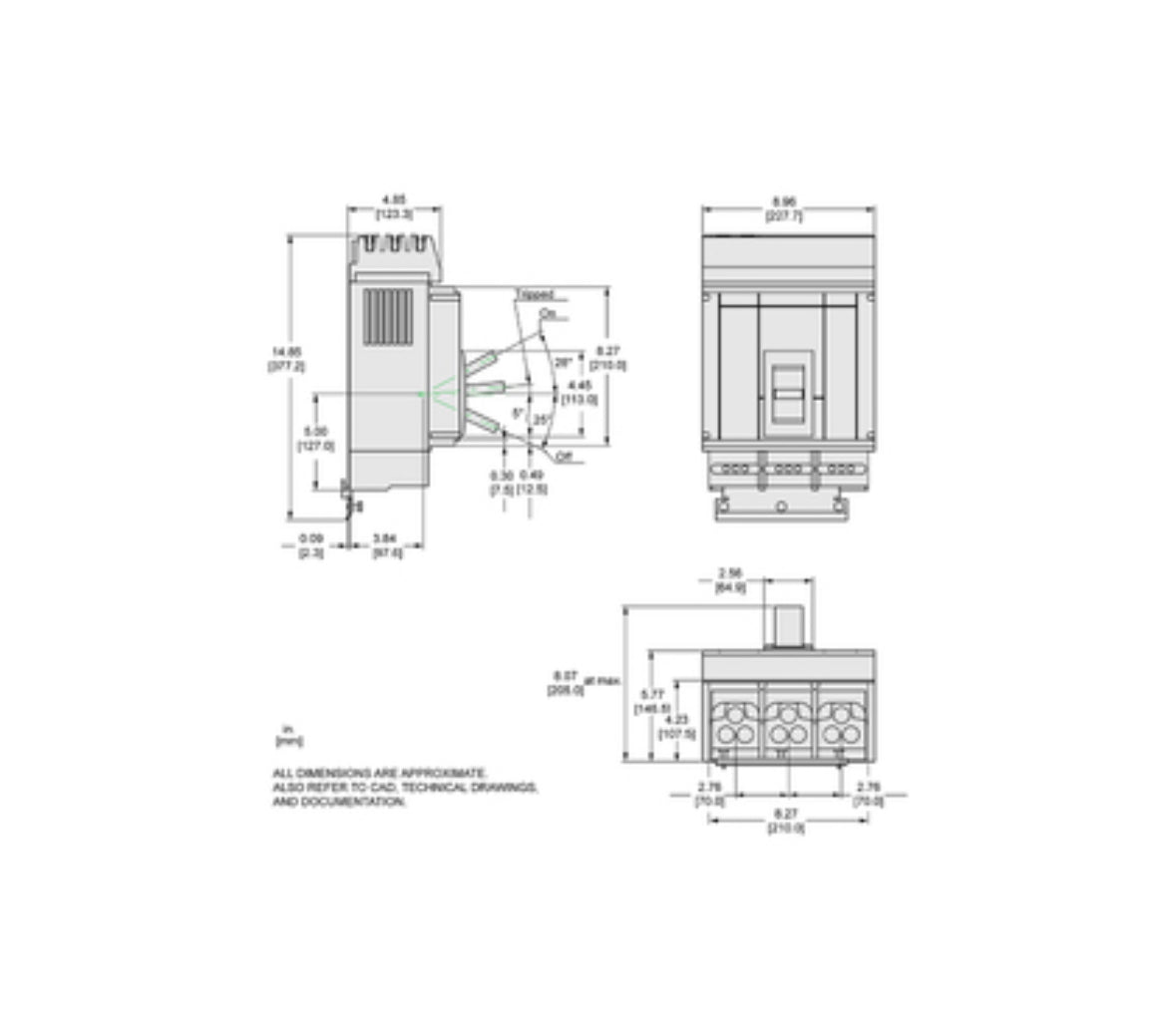

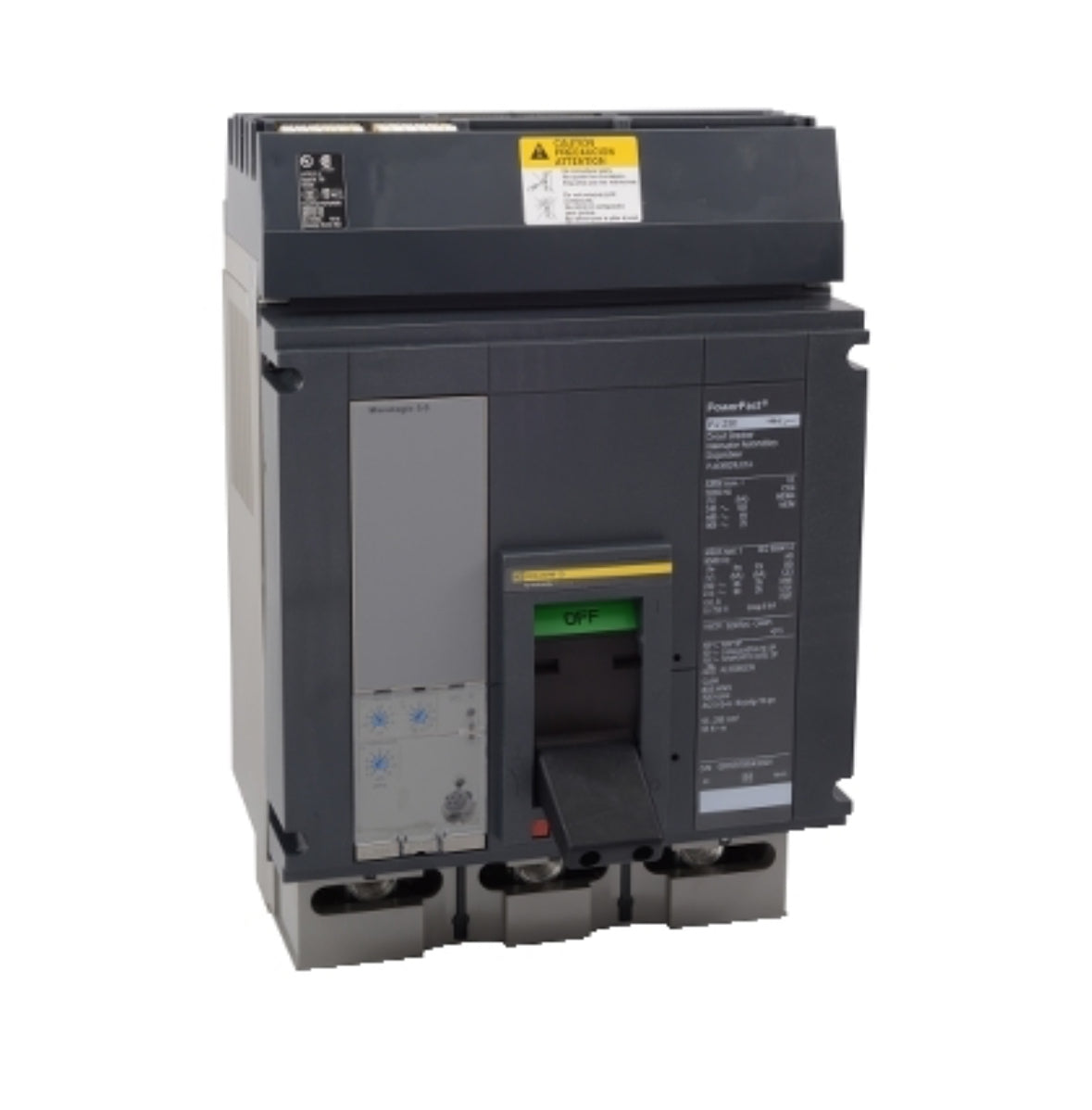

Schneider Electric PJA36080CU63CE1ACSAYP Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 5.0P, 100%, ABC, modbus

Schneider Electric PJA36080CU63CE1ACSAYP Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 5.0P, 100%, ABC, modbus

Regular price $22,000.00 USD
Regular price Sale price $22,000.00 USD
Liquid error (snippets/price line 89): divided by 0% OFF
In stock
Shipping calculated at checkout.

Low stock: 8 left

MPN
View full details
product-img
Schneider Electric PJA36080CU63CE1ACSAYP Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 5.0P, 100%, ABC, modbus
Regular price $22,000.00 USD
Regular price Sale price $22,000.00 USD
Shipping calculated at checkout.

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Power with a 5.0P trip unit and an LSI function with Modbus communications. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

MainRangePowerPactproduct namePowerPact PProduct or Component TypeCircuit breakerDevice ApplicationDistribution

Line Rated Current800 ANumber of Poles3PControl TypeToggleBreaking capacity codeJBreaking capacityAIR 100 kA 240 V AC 50/60 Hz UL 489
AIR 65 kA 480 V AC 50/60 Hz UL 489
AIR 25 kA 600 V AC 50/60 Hz UL 489
Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2
Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2[Ue] rated operational voltage600 V AC 50/60 Hz UL 489Network Frequency50/60 Hz[Ics] rated service breaking capacity35 kA 240 V AC 50/60 Hz IEC 60947-2
25 kA 380/415 V AC 50/60 Hz IEC 60947-2[Uimp] rated impulse withstand voltage8 kV IEC 60947-2Trip unit technologyElectronic, power, MicroLogic 5.0 P, LSIContinuous current rating100 %[Ui] rated insulation voltage750 V IEC 60947-2Trip unit nameMicroLogic 5.0 PAccessory / separate part typeModbus connecting cableAWG gauge3 x AWG 3/0...500 kcmil aluminium/copperLocal signallingOverload 1 1 LED amber)
1 flag green)
Trip causes 4 trip indicator red)Mounting modeI-Line bracket)Mounting SupportBracketElectrical connectionI-Line connection, line
Lugs, loadTerminal identifierAL800M23KLong time pick-up adjustment range0.4...1 x IrMounting Height9 in (228.6 mm)Tightening torque442.5 lbf.in (50 N.m) 0.1…0.4 in² (95…240 mm²) (3 x AWG 3/0...500 kcmil)
8.9…11.5 lbf.in (1.0…1.3 N.m)Number of slots2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 overcurrent trip switch SDE plug-in)
1 voltage release MN or MX plug-in)Power wire stripping length1.0 in (25 mm)Height12.86 in (326.64 mm)Width8.27 in (210.06 mm)Depth8.05 in (204.47 mm)Product Weight32 lb(US) (14.5 kg)Quantity per Set1Phase connectionABCCommunication interfaceModbusCircuit breaker applicationHACR rated

Quality labelsCEStandardsUL
CSA
NEMA
NOM-003-SCFI-2000
IEC 60947-2Product certificationsUL
CSA
NOM
IP degree of protectionFront cover IP40Pollution degree3 IEC 60947-1Ambient air temperature for operation-13…158 °F (-25…70 °C)Ambient Air Temperature for Storage-58…185 °F (-50…85 °C)Operating altitude< 6561.68 ft (2000 m) without derating
13123.36 ft (4000 m) with derating
