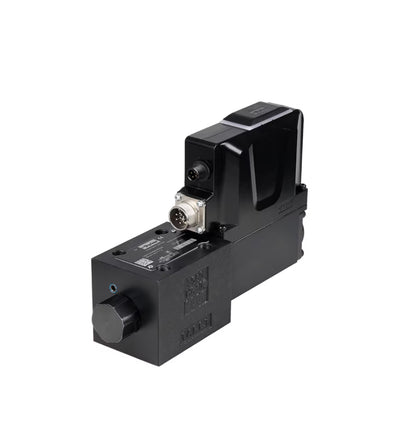

D3FPE50YA9VB00 - Electronic Hydraulic Valves

D3FPE50YA9VB00 - Electronic Hydraulic Valves

Regular price $6,999.00 USD
Regular price Sale price $6,999.00 USD
Liquid error (snippets/price line 89): divided by 0% OFF
In stock
Shipping calculated at checkout.

Low stock: 2 left

MPN
View full details
product-img
D3FPE50YA9VB00 - Electronic Hydraulic Valves
Regular price $6,999.00 USD
Regular price Sale price $6,999.00 USD
Shipping calculated at checkout.



Signal Output: ±10 V
Marking: Standard
Port Connection: NG10 / CETOP 05
Product Series: Proportional DC Valve
Spool Code: E50Y
Port Connection: NG10 / CETOP 05
Operation Type: Direct
Spool Position: P to A
Electronics Type: Onboard
Flow Rate: 100 L/min
Seal Material: FPM
Maximum Flow Rate: 150 L/min
Mounting Position: Unrestricted
Flow Rate: 100 L/min
Signal Input: ±10 V
Connection Type: 6 + PE
Pressure Differential: 35 bar
Mounting Type: Subplate
Sensor type: omit
Actuation Type: VCD®-actuator
For Fluid Type: Hydraulic Oil, Others
Function: Proportional, 3-Way
Maximum Operating Pressure: 350 bar
Maximum Ambient Temperature: 60 °C
Minimum Ambient Temperature: -20 °C
Maximum Fluid Temperature: 60 °C
Minimum Fluid Temperature: -20 °C
Maximum Kinematic Viscosity: 400 cSt
Minimum Kinematic Viscosity: 20 cSt
Filter Efficiency Rating: ISO 4406 18/16/13
Leak Rate: <400 ml/min
Seal Material: FPM
Mounting Style: DIN 24340, ISO 4401, CETOP RP121, NFPA
Response Time: <6 ms
Hysteresis: <0.05 %
Ingress Protection Rating: IP65 in accordance with EN 60529
Power Supply Voltage: 24 V Nominal (tolerance range 22 … 30), Electric Shut-off at < 19 V Nominal (tolerance range 22 … 30), Ripple < 5 V % Eff., Surge Free V % Eff.
Vibration Resistance: 10 Sinus 5...2000 Hz Acc. IEC 60068-2-6, 10 (RMS) Random Noise 20...2000 Hz Acc. IEC 60068-2-64, 15 Shock Acc. IEC 60068-2-27
Body Material: Cast Iron
Weight: 6.5 kg
Application: Industrial Hydraulic
Brand: Parker
Technology: Hydraulics
Division: Industrial Systems Division Europe
Valve Type: Proportional DC Valve
Media: Hydraulic Oil

placed after 4:15pm (PST) on Friday will be processed the following Monday. Orders placed on a holiday will be processed the following non-holiday business day. Once your package ships, we will send you an email with a tracking number and link so you can see the movement of your package. You can review your order status at any time by visiting our website.

MPN

D3FPE50YA9VB00
