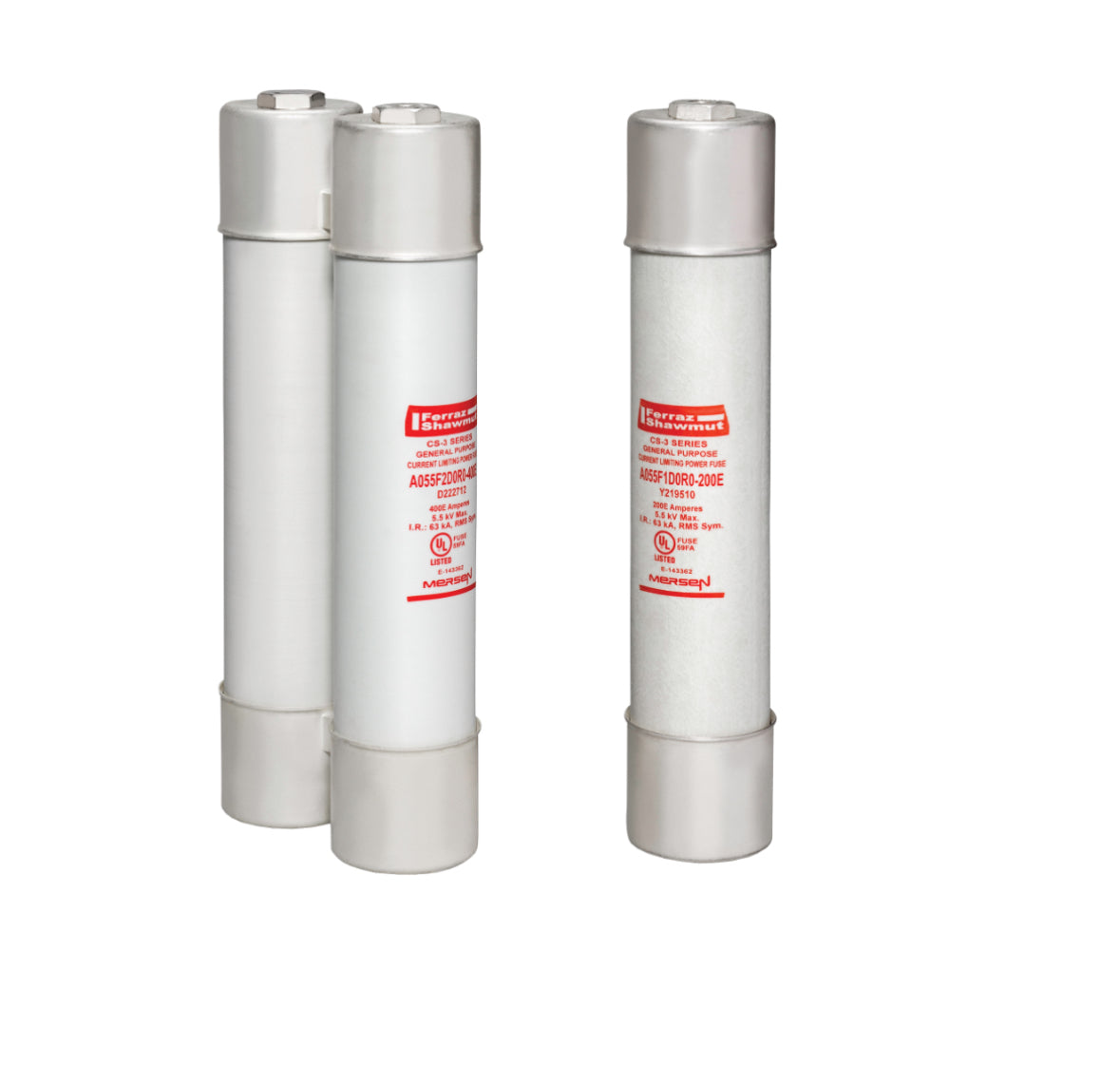

Mersen-Ferraz A155F2DTR0-125E 15.5Kv Fuse
Mersen-Ferraz A155F2DTR0-125E 15.5Kv Fuse
Regular price
$1,999.00 USD
Regular price
Sale price
$1,999.00 USD
Unit price
per
In stock
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Mersen-Ferraz A155F2DTR0-125E 15.5Kv Fuse
Regular price
$1,999.00 USD
Regular price
Sale price
$1,999.00 USD
Unit price
per
Shipping calculated at checkout.
Medium Voltage E-Rated Fuse 15500VAC 125A Ferrule, Series: DTR0 Visual Indicator Amp-Trap®
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
Technical Specifications
| Item number | A155F2DTR0-125E |
| Description | Medium Voltage E-Rated Fuse 15500VAC 125A Ferrule, Series: DTR0 Visual Indicator Amp-Trap® |
| EAN/UPC Code | 782001364892 |
| Rated voltage AC UL | 15500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 125 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Speed/Characteristic | E-Rated |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Width | 3 in |
| Product Length | 21.75 in |
| Product Height | 6.63 in |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 25.83 lb |
| Sell Pack Width | 8 in |
| Sell Pack Length | 23.5 in |
| Sell Pack Height | 3.88 in |
| Product group | Medium Voltage IEEE Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 24.6 lb |
