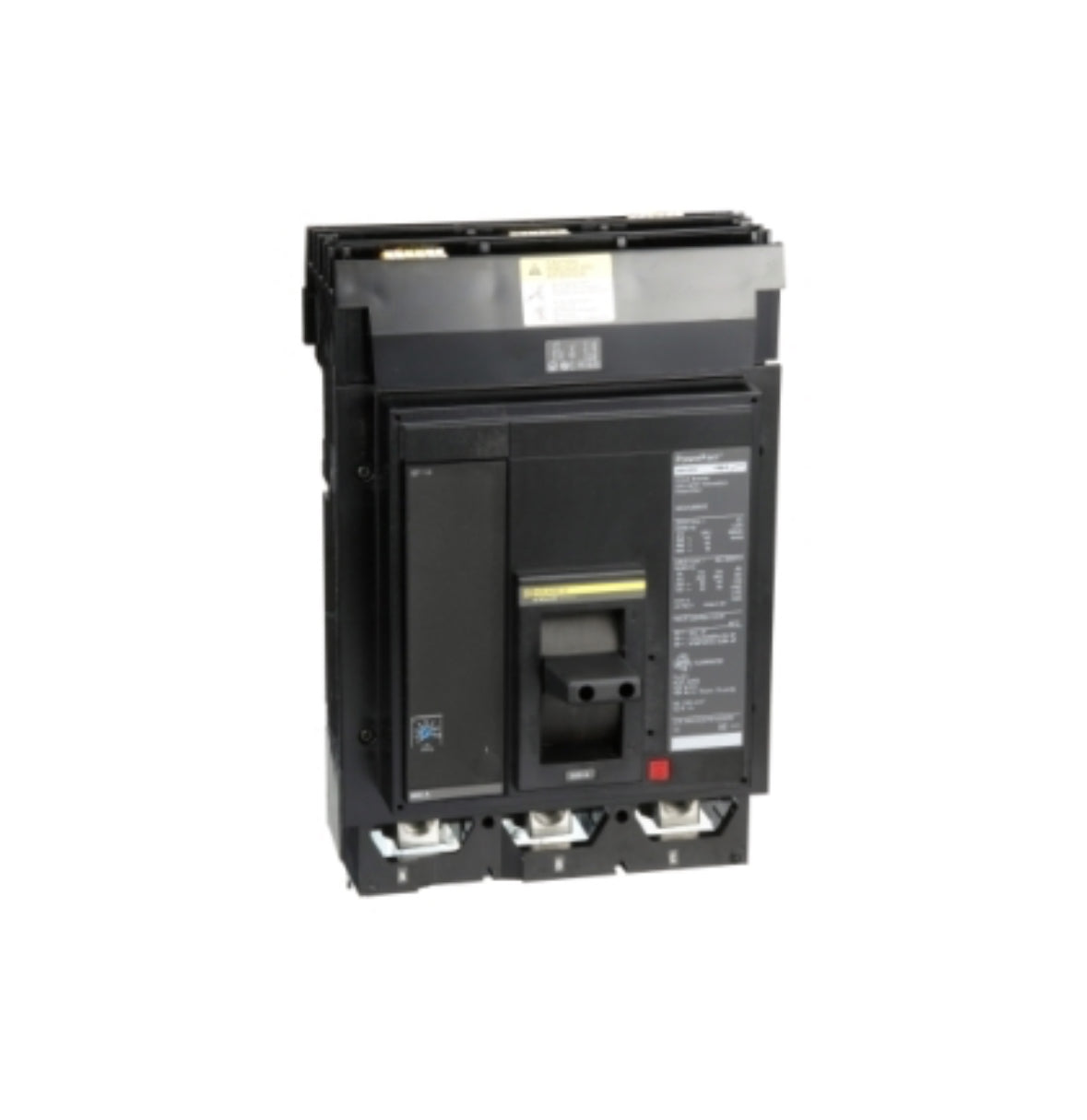

Schneider Electric MGA36800 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 800 Amp - 3 Pole - 600 Volt
Schneider Electric MGA36800 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 800 Amp - 3 Pole - 600 Volt
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
Unit price
per
In stock
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
Schneider Electric MGA36800 - Square D - Molded Case Circuit Breaker I-Line Plug-In - 800 Amp - 3 Pole - 600 Volt
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
Unit price
per
Shipping calculated at checkout.
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
MainRangePowerPactproduct namePowerPact MProduct or Component TypeCircuit breakerDevice ApplicationDistribution
<head><meta charset="UTF-8" /></head>
| Line Rated Current | 800 A |
|---|---|
| Number of Poles | 3P |
| Control Type | Operating handle |
| Breaking capacity code | G |
| Breaking capacity | AIR 65 kA 240 V AC 50/60 Hz UL 489 AIR 35 kA 480 V AC 50/60 Hz UL 489 AIR 18 kA 600 V AC 50/60 Hz UL 489 Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz UL 489 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 25 kA 240 V AC 50/60 Hz IEC 60947-2 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Electronic, basic, ET 1.0, |
| Magnetic tripping current | 1600…8000 A |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 750 V IEC 60947-2 |
| Trip unit name | ET 1.0 |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| AWG gauge | 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Local signalling | 1 trip indicator green) |
| Mounting mode | I-Line bracket) |
| Mounting Support | Bracket |
| Electrical connection | I-Line connection, line Lugs, load |
| Terminal identifier | AL800M23K |
| Long time pick-up adjustment range | 300...800 A |
| Mounting Height | 9 in (228.6 mm) |
| Tightening torque | 442.5 lbf.in (50 N.m) 0.1…0.4 in² (95…240 mm²) (3 x AWG 3/0...3 x 500 kcmil) |
| Number of slots | 2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 voltage release MN or MX plug-in) |
| Power wire stripping length | 1.0 in (25 mm) |
| Color | Black |
| Height | 12.86 in (326.64 mm) |
| Width | 8.27 in (210.06 mm) |
| Depth | 8.05 in (204.47 mm) |
| Product Weight | 29 lb(US) (13.2 kg) |
| Quantity per Set | 1 |
| Circuit breaker application | HACR rated |
